£1,540.83 Exc. VAT

ICBbi 5122

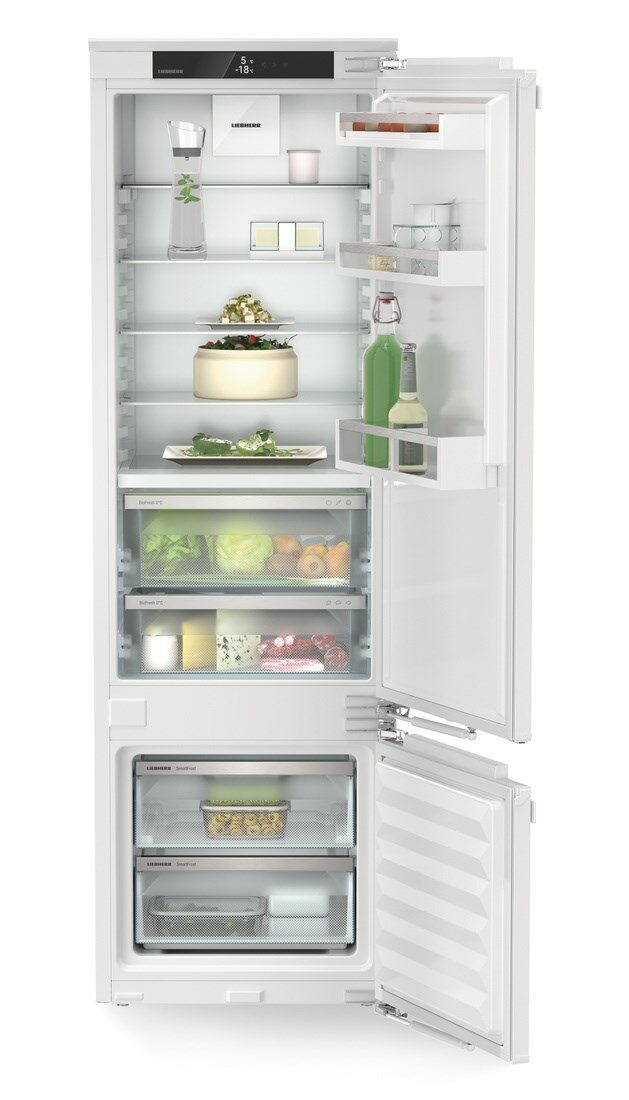

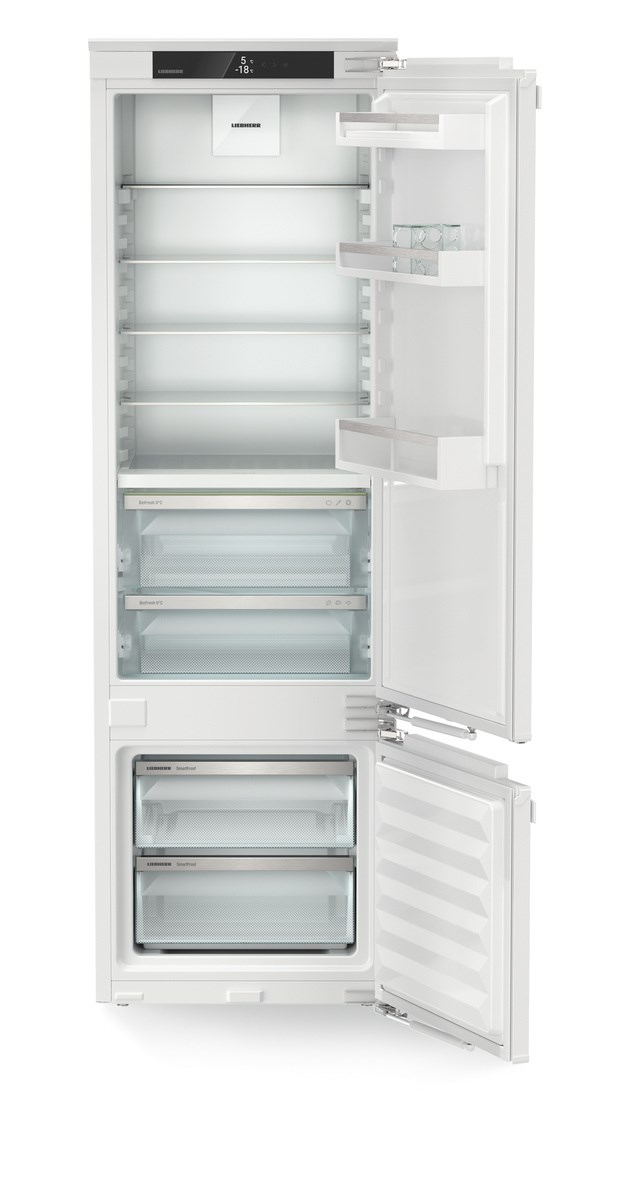

Integrated fridge-freezer with BioFresh and SmartFrost

Aperture dimensions height/width/depth: 177.2 – 178.8 / 56 – 57 / 55 cm
Total volume: 255 l
Noise level: 29 dB
IceMaker: No
Connectivity solution: integrated, fixed
.
.
.
Add to Wishlist
Add to Wishlist
SKU: ICBbi5122 Categories: , Tag:

Description

ICBbi5122 Installation Guide

The featured images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Fruit & Vegetable safe

Crunchy salad and strawberries: the most delicate foods deserve a special place so they stay fresh longer – in BioFresh safes. In the Fruit & Vegetable safe the temperature is close to 0°C. Combined here with the constant humidity, thanks to the air-tight closure, unpackaged fruit and vegetables feel particularly at home. You do not have to adjust anything.





Meat & Dairy safe

Do you want the tender veal fillet or fresh milk to stay fresh for as long as possible? The BioFresh safes will ensure this is the case. In the Meat & Dairy Safe, the temperature is close to 0 °C – ideal storage conditions for even the most delicate of foods. And best of all, everything is perfectly adjusted in the factory for immediate use – and for longer freshness.





SmartFrost

Small and smart: SmartFrost technology significantly reduces frost build-up in the interior and on frozen food, and thus reduces the times you need to defrost your freezer, and its electricity consumption. Another advantage: The interior walls are particularly smooth and therefore easy to clean.





DuoCooling

DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.





Integrated SmartDeviceBox

Your Liebherr may well be standing in the kitchen – but if you want, it can also be connected to the Internet at any time. The integrated SmartDeviceBox opens the door to all the Smart Home benefits. Simply plug it in, switch it on and connect your Liebherr to the network via Wi-Fi.





Touch display

Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.





Output and consumption

  • Energy efficiency class: B
  • Energy consumption per year: 116 kWh/a
  • Climate class: SN-T
  • Noise level: 29 dB
  • Refrigerant: R 600a
  • Voltage: 220-240 V ~
  • Frequency: 50-60 Hz
  • Connection rating: 1.4 A

Control and functions

  • Control: Monochrome LC display, touch display
  • Control unit: Touch
  • Number of temperature zones: 3
  • Number of regulated refrigeration circuits: 2
  • Temperature display: Fridge & freezing compartment
  • SuperCool: Adjustable on appliance and via app
  • SuperFrost: Adjustable on appliance and via app
  • Door alarm, cooling: Adjustable on appliance and via app
  • Door alarm, freezing: Adjustable on appliance and via app
  • BottleTimer: Adjustable on app
  • Connectivity solution: integrated, fixed
  • IceCubeTimer: —
  • NightMode: Adjustable on app
  • Display lock: Adjustable on appliance

Refrigerator compartment

  • Adjustable temperature range, refrigerator compartment: +3 °C to +9 °C
  • Moisture regulation: DuoCooling
  • Refrigerator compartment climate zones: Fruit & Vegetable safe / Meat & Dairy safe
  • Freshness technology: BioFresh
  • Number of BioFresh safes: 2
  • of which on castors: 0
  • Interior light of BioFresh safe: —
  • Defrosting method: automatic
  • Forced air cooling: ✔
  • FreshAir filter: in valve
  • Pull-out system drawer, refrigerator compartment: Partially-extendible telescopic rails
  • SoftSystem: SoftSystem
  • Illumination cooling compartment: LED ceiling lighting
  • Number of storage shelves, refrigerator compartment: 5
  • of which separable: 1
  • of which height-adjustable: 4
  • VarioSafe: —
  • InfinitySpring: —
  • OpenStage drawers: —
  • Bottle storage: Integrated
  • Bottle rack: 1
  • Number of can racks: 2
  • VarioBox: —
  • VarioBoxes: 0
  • Butter dish: —
  • Egg tray: 10 eggs
  • Number of FlexSystems: 0
  • Storage rack: Bottle and can rack
  • Height-adjustable inner door shelf: Gradual adjustment

Freezer compartment

  • Temperature range freezer compartment: -15 °C to -26 °C
  • Cooling technology: SmartFrost
  • Freezer compartment position: Bottom
  • Defrosting method: manual
  • Storage time in case of fault according to GS *: 9 h
  • Freezing capacity in 24 hours according to GS *: 4.00 kg / 24h
  • No. of drawers in freezer compartment: 2
  • FrostSafe: Drawers closed on all sides with transparent front
  • Drawer pull-out system, freezer compartment: Drawer on safety glass
  • Interior light, freezer compartment: —
  • 4-star freezer compartment door: —
  • Number of glass shelves, 4-star freezer compartment: 0
  • VarioSpace: ✔
  • IceMaker: No
  • IceMaker safe lighting: —
  • Water inlet: —
  • Ice cube tray: Ice cube tray
  • Number of ice cube trays: 1
  • Number of water filters: 0
  • Number of cold storage accumulators: 0
  • Freezer tray: 0
  • Star-rating: 4

Design and materials

  • Dry rear panel: ✔
  • Material dry back wall: plastic
  • Inner door décor: —
  • Material door shelves: White plastic
  • Storage shelf material, refrigerator compartment: Glass
  • Material of adjustable shelves in the freezer compartment: Glass
  • Door material: Steel

Set-up and installation

  • Type of installation: Designed for integrated use
  • Door assembly: Fixed door
  • Max. kitchen unit door weight: 18/12
  • Door hinges: Right reversible
  • Door hinge replacement: Possible for customer
  • Door opening angle: 115°
  • Door seal: Replaceable
  • Height-adjustable feet: 2
  • Levelling bars: ✔
  • Number of levelling bars: 2
  • Ventilation: Ventilation grates
  • Decor frame: —
  • Connector cable (length): 2,200 mm

Specifications

  • Aperture dimensions height/width/depth: 177.2 – 178.8 / 56 – 57 / 55 cm
  • Height / Width / Depth (with packaging): 1,829 / 572 / 622 mm
  • Dimensions H/W/D: 177 / 55.9 / 54.6 cm
  • Weight (without packaging): 67.8 kg
  • Weight (with packaging): 71 kg
  • Total volume **: 255 l
  • Volume, refrigerator compartments: 201 l
  • of which BioFresh: 70.9 l
  • Volume, freezer compartments: 54 l
  • Of which 4-star compartment: 54.4 l

.

.

.

Additional information

Weight 67.8 kg
Dimensions 55 × 56-57 × 177.2-178 cm
Product Type

Fridge-Freezer

Energy Rating

B

Warranty

2 Year
