£999.17 Exc. VAT

ICNE 5103

Integrated fridge-freezer with EasyFresh and NoFrost

Aperture dimensions height/width/depth 177.2 – 178.8 / 56 – 57 / 55 cm
Total volume 253 l
Noise level 34 dB
IceMaker No
Connectivity solution retrofittable
.
.
.
Add to Wishlist
Add to Wishlist
SKU: ICNE5103 Categories: , Tag:

Description

ICNE5103 Installation Guide

The featured images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

EasyFresh

The guarantee of market freshness in the home is our EasyFresh-Safe. Whether it’s unpackaged vegetables or fruit, this ensures optimal storage for everything. Thanks to the air-tight closure, the food causes the humidity in the safe to rise. This keeps the food fresh for a long time.





NoFrost

When you open your freezer, you want to see frozen food – and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things – and saving money.





DuoCooling

DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.





Retrofitable SmartDeviceBox

Want to be prepared for the future of the Smart Home? Your Liebherr will be happy to help. You can retrofit it with a SmartDeviceBox which will connect your Liebherr to the Internet. The SmartDeviceBox can be installed in just a few steps and will open up the whole world of digital possibilities to you today.





Touch display

Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.





Space for baking tray

Do you want to keep that home-baked fruit pie fresh? Or maybe a prepared pizza to be baked later on? If so, simply slide your baking tray into your Liebherr – it has plenty of space for storing a baking tray. Really convenient – you can slide the baking tray in and out when the door is opened at 90°.





Output and consumption

  • Energy efficiency class: E
  • Energy consumption per year: 227 kWh/a
  • Climate class: SN-T
  • Noise level: 34 dB
  • Refrigerant: R 600a
  • Voltage: 220-240 V ~
  • Frequency: 50-60 Hz
  • Connection rating: 1.4 A 183 W

Control and functions

  • Control: Monochrome LC display, touch display
  • Control unit: Touch
  • Number of temperature zones: 2
  • Number of regulated refrigeration circuits: 2
  • Temperature display: Fridge & freezing compartment
  • SuperCool: Adjustable on appliance and via app
  • SuperFrost: Adjustable on appliance and via app
  • Door alarm, cooling: Adjustable on appliance and via app
  • Door alarm, freezing: Adjustable on appliance and via app
  • BottleTimer: Adjustable on app
  • Connectivity solution: retrofittable
  • IceCubeTimer: —
  • NightMode: Adjustable on app
  • Display lock: Adjustable on appliance

Refrigerator compartment

  • Adjustable temperature range, refrigerator compartment: +2 °C to +9 °C
  • Moisture regulation: DuoCooling
  • Refrigerator compartment climate zones: EasyFresh
  • Defrosting method: automatic
  • Forced air cooling: ✔
  • FreshAir filter: in valve
  • Pull-out system drawer, refrigerator compartment: Integrated drawer guide
  • Illumination cooling compartment: LED ceiling lighting
  • Number of storage shelves, refrigerator compartment: 4
    Of which separable: 0
    of which height-adjustable: 3
  • VarioSafe: —
  • OpenStage drawers: —
  • Bottle storage: —
  • Bottle rack: 1
  • Number of can racks: 2
  • VarioBox: —
  • VarioBoxes: 0
  • Butter dish: —
  • Egg tray: 10 eggs
  • Storage rack: Bottle and can rack
  • Height-adjustable inner door shelf: Gradual adjustment

Freezer compartment

  • Temperature range freezer compartment: -15 °C to -26 °C
  • Cooling technology: NoFrost
  • Freezer compartment position: Bottom
  • Defrosting method: automatic
  • Storage time in case of fault according to GS *: 9 h
  • Freezing capacity in 24 hours according to GS *: 6 kg / 24h
  • No. of drawers in freezer compartment: 3
  • FrostSafe: Drawers closed on all sides with transparent front
  • Drawer pull-out system, freezer compartment: Drawer on safety glass
  • Interior light, freezer compartment: —
  • 4-star freezer compartment door: —
  • Number of glass shelves, 4-star freezer compartment: 0
  • VarioSpace: ✔
  • IceMaker: No
  • IceMaker safe lighting: —
  • Water inlet: —
  • Ice cube tray: —
  • Number of ice cube trays: 0
  • Number of water filters: 0
  • Number of cold storage accumulators: 0
  • Freezer tray: 0
  • Star-rating: 4

Design and materials

  • Dry rear panel: —
  • Material dry back wall: —
  • Inner door décor: —
  • Material door shelves: White plastic
  • Storage shelf material, refrigerator compartment: Glass
  • Material of adjustable shelves in the freezer compartment: Glass
  • Door material: Steel

Set-up and installation

  • Type of installation: Designed for integrated use
  • Door assembly: Fixed door
  • Max. kitchen unit door weight: 18/12
  • Door hinges: Right reversible
  • Door hinge replacement: Possible for customer
  • Door opening angle: 115°
  • Door seal: Replaceable
  • Height-adjustable feet: 2
  • Levelling bars: ✔
  • Number of levelling bars: 2
  • Ventilation: Ventilation grates
  • decor frame: —
  • Connector cable (length): 2,200 mm

Specifications

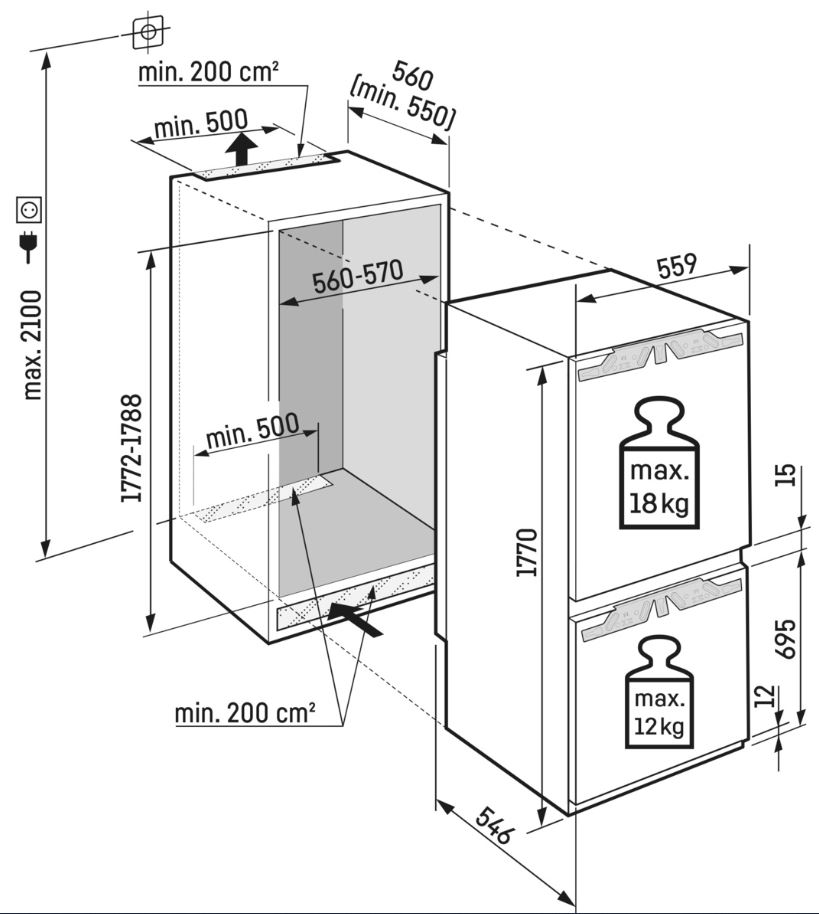

  • Aperture dimensions height/width/depth: 177.2 – 178.8 / 56 – 57 / 55 cm
  • Height / Width / Depth (with packaging): 1,829 / 572 / 622 mm
  • Dimensions H/W/D: 177 / 55.9 / 54.6 cm
  • Weight (without packaging): 59.3 kg
  • Weight (with packaging): 62.7 kg
  • Total volume **: 253 l
  • Volume, refrigerator compartments: 183 l
  • Volume, freezer compartments: 70 l
  • Of which 4-star compartment: 69.9 l

.

.

.

Additional information

Weight 59.3 kg
Dimensions 55 × 56-57 × 177.2-178 cm
