Description
Output and consumption
- Energy efficiency class: E
- Energy consumption per year: 299 kWh/a
- Climate class: SN-T
- Noise level: 39 dB
- Refrigerant: R 600a
- Voltage: 220-240 V ~
- Frequency: 50/60 Hz
- Connection rating: 1.5 A 190.1 W
Control and functions
- Malfunction: Warning signal optical and acoustical
- Control: MagicEye with digital temperature adjustment
- Control unit: Touch
- Number of temperature zones: 3
- Number of regulated refrigeration circuits: 2
- Child proofing: ✔
- Temperature display: Fridge & freezing compartment
- BottleTimer: —
- Connectivity solution: —
Refrigerator compartment
- Adjustable temperature range: +3 °C to +7 °C
- Moisture regulation: DuoCooling
- Refrigerator compartment climate zones: BioFresh Monolith
- Freshness technology: BioFresh
- Number of BioFresh safes: 2
- Interior light of BioFresh safe: LED light
- Defrosting method: automatic
- Forced air cooling: ✔
- FreshAir filter: —
- Pull-out system drawer, refrigerator compartment: Fully-extendible telescopic rails
- SoftSystem: ✔
- Illumination cooling compartment: LED light column, both sides
- Number of storage shelves, refrigerator compartment: 4
of which separable: 1
of which height-adjustable: 3 - Bottle storage: Integrated
- Bottle rack: 1
- Number of can racks: 2
- Number of FlexSystems: 0
- Type of door rack Cooling compartment: Can rack / Gallon rack
- Height-adjustable inner door shelf: Gradual adjustment
Freezer compartment
- Adjustable temperature range: -14 °C to -27 °C
- Cooling technology: NoFrost
- Freezer compartment position: Bottom
- Defrosting method: automatic
- Storage time in case of fault according to GS *: 14.3 h
- Freezing capacity in 24 hours according to GS *: 6.70 kg / 24h
- No. of drawers in freezer compartment: 2
- FrostSafe: with grey drawers completely closed on all sides
- Drawer pull-out system, freezer compartment: Fully extendible telescopic rails with self-closing mechanism
- Interior light, freezer compartment: LED light
- IceMaker: Yes
- Type of hose: Reinforced flexible hose
- IceMaker safe lighting: —
- Water inlet: Fixed water connection
- MaxIce function: 2.7 kg / 24h
- Ice cube production: 1.2 kg / 24h
- Ice cube storage: 2.7 kg
- Number of water filters: 1
- Star-rating: 4
Design and materials
- Dry rear panel: ✔
- Inner back wall material: stainless steel
- Inner door décor: —
- Design of inner door rack: Comfort GlassLine
- Material inner door rack: Glass with plastic trim
- Storage shelf material, refrigerator compartment: Glass
- Material of adjustable shelves in the freezer compartment: Plastic
- Door material: Stainless Steel
Set-up and installation
- Type of installation: Designed for integrated use
- Door assembly: Fixed door
- Max. kitchen unit door weight: 27/10/10
- Door hinges: Right reversible
- Door hinge replacement: Possible through customer service
- Door opening angle: 115°
- Door seal: Replaceable
- Height-adjustable feet: 2
- Levelling bars: —
- Ventilation: Base ventilation
- decor frame: —
- Connector cable (length): 2,800 mm
Specifications

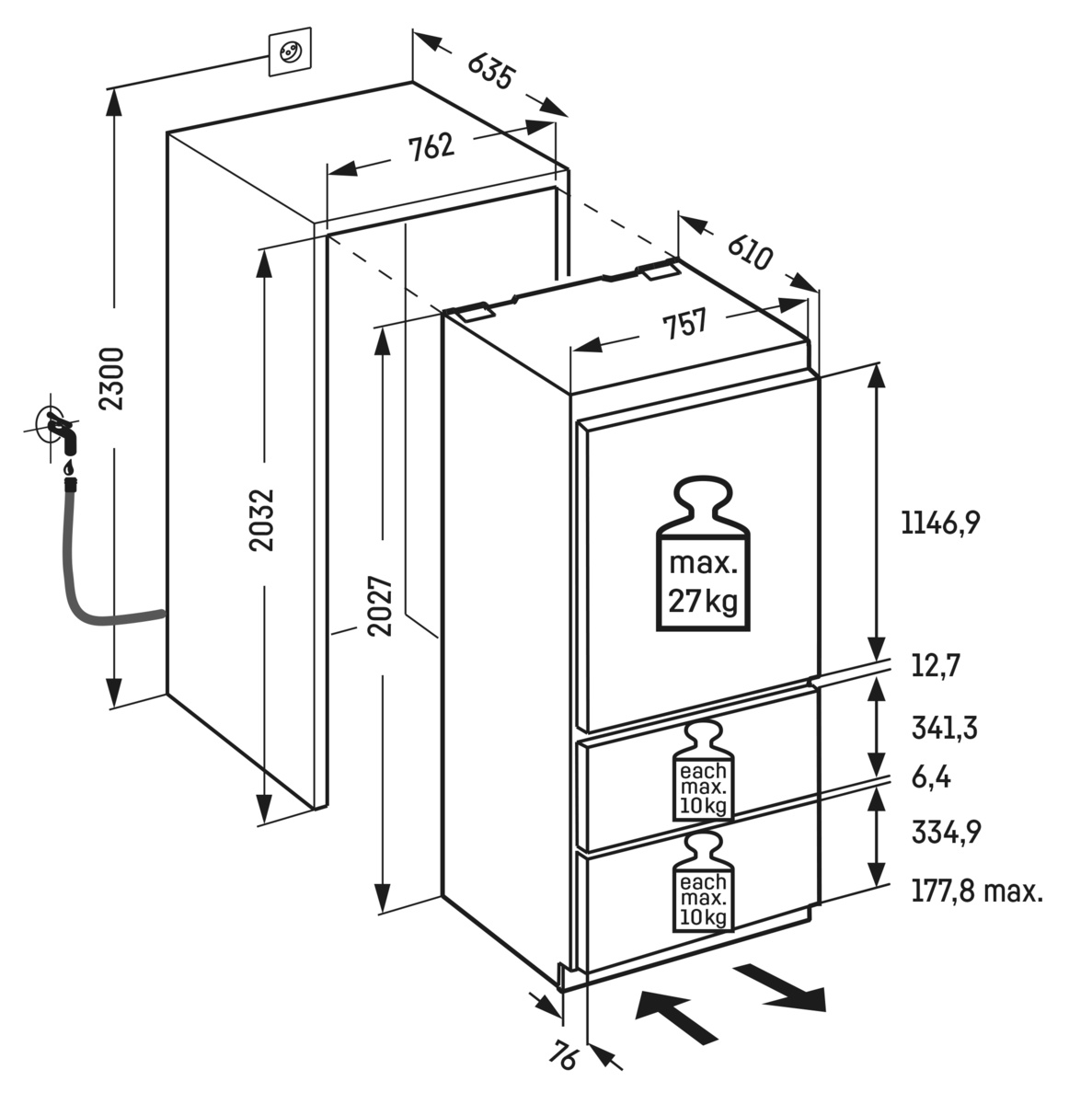

- Aperture dimensions height/width/depth: 203.2 – 207.2 / 76.2 / 63.5 cm
- Height / Width / Depth (with packaging): 2,150 / 820 / 740 mm
- Dimensions H/W/D: 202.7 / 75.7 / 61 cm
- Weight (without packaging): 145 kg
- Weight (with packaging): 155 kg
- Total volume **: 402 l
- Volume, refrigerator compartments: 277 l
of which BioFresh: 62.1 l - Volume, freezer compartments: 125 l
of which 4-star compartment 124.6 l
.
.
.
