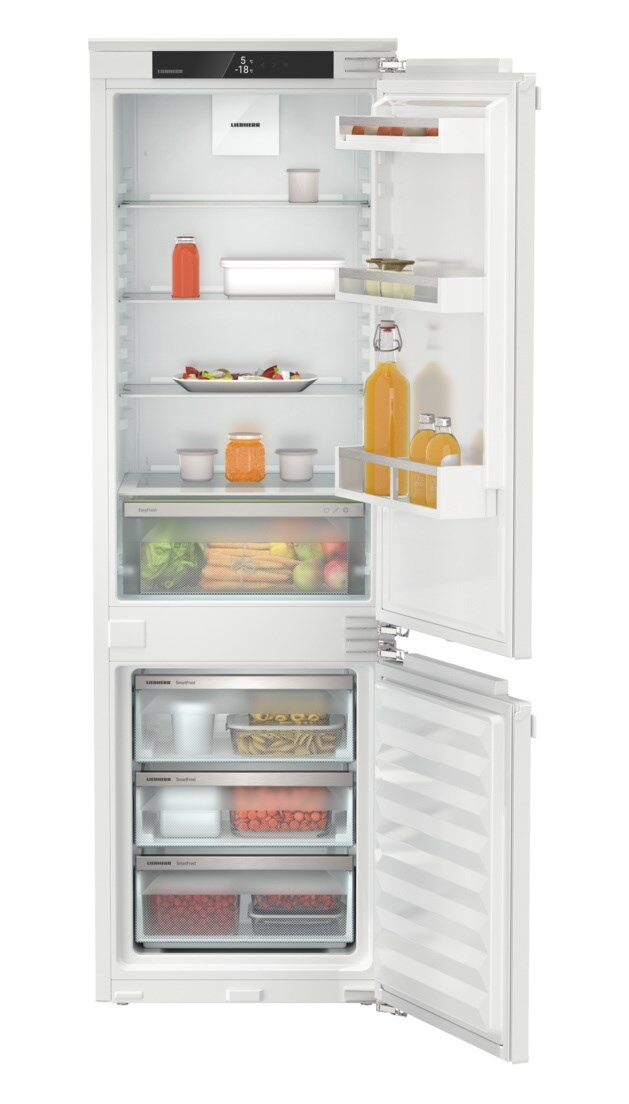

LIEBHERR INTEGRATED FRIDGE FREEZER WITH EASYFRESH & SMARTFROST

ICE5103 Installation Guide

EasyFresh

The guarantee of market freshness in the home is our EasyFresh-Safe. Whether it’s unpackaged vegetables or fruit, this ensures optimal storage for everything. Thanks to the air-tight closure, the food causes the humidity in the safe to rise. This keeps the food fresh for a long time.

SmartFrost

Small and smart: SmartFrost technology significantly reduces frost build-up in the interior and on frozen food, and thus reduces the times you need to defrost your freezer, and its electricity consumption. Another advantage: The interior walls are particularly smooth and therefore easy to clean.

DuoCooling

DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the fridge and freezer compartments. The food neither dries out nor is odour transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.

Retrofitable SmartDeviceBox

Want to be prepared for the future of the Smart Home? Your Liebherr will be happy to help. You can retrofit it with a SmartDeviceBox which will connect your Liebherr to the Internet. The SmartDeviceBox can be installed in just a few steps and will open up the whole world of digital possibilities to you today.

Touch display

Fingertip control: the touch display enables easy and intuitive operation of your Liebherr. All functions are clearly arranged on the display. By gently tapping a finger, for example, you can easily select the functions or check the current temperature of your refrigerator.

Space for baking tray

Do you want to keep that home-baked fruit pie fresh? Or maybe a prepared pizza to be baked later on? If so, simply slide your baking tray into your Liebherr ¬- it has plenty of space for storing a baking tray. Really convenient – you can slide the baking tray in and out when the door is opened at 90°.

Output and consumption

• Energy efficiency class: E
• Energy consumption per year: 228.10 kWh/a
• Climate class: SN-T
• Noise level: 35 dB
• Voltage: 220-240 V ~
• Frequency: 50-60 Hz
• Connection rating: 1.4 A

Control and functions

• Control: basic UI
• Temperature zones: 2
• Number of regulated refrigeration circuits: 2
• Temperature display: Fridge & freezing compartment
• SuperCool: Adjustable on appliance and via app
• SuperFrost: Adjustable on appliance and via app
• Power failure alarm: Adjustable on appliance and via app
• Appliance failure alarm: Adjustable on appliance and via app
• Door alarm, cooling: Adjustable on appliance and via app
• Door alarm, freezing: Adjustable on appliance and via app
• AlarmLightAmplifier: Adjustable on appliance and via app
• BottleTimer: Adjustable on app
• CleaningMode: Adjustable on appliance and via app
• EnergySaver: Adjustable on appliance and via app
• IceCubeTimer: Adjustable on app
• Language settings: —
• NightMode: Adjustable on app
• SabbathMode: Adjustable on appliance and via app
• Temperature alarm, freezing: Adjustable on appliance and via app
• Display lock: Adjustable on appliance
• HolidayMode: Adjustable on appliance and via app
• SmartDevice: Adjustable on appliance and via app
• PartyMode: Adjustable on appliance and via app

Refrigerator compartment

• Adjustable temperature range, refrigerator compartment: +2 °C to +9 °C
• Moisture regulation: humid cooling compartment
• Refrigerator compartment climate zones: EasyFresh
• Defrosting method: automatic
• Forced air cooling: ✔
• FreshAir filter: in valve
• Pull-out system drawer, refrigerator compartment: Integrated rails
• Illumination cooling compartment: LED ceiling lighting
• Number of storage shelves, refrigerator compartment: 4

of which separable: 0

of which height-adjustable: 3

• OpenStage drawers: —
• Bottle storage: —
• Bottle rack: 1
• Number of can racks: 2
• VarioBox: —
• VarioBoxes: 0
• Egg tray: 10 eggs
• Storage rack: Storage rack with bottle and can holder
• Height-adjustable inner door shelf: Gradual adjustment
• Pull-out unit: —

Freezer compartment

• Temperature range freezer compartment: -15°C to -26°C
• Cooling technology: SmartFrost
• Freezer compartment position: Bottom
• Defrosting method: Manual
• Storage time during interruptions in power supply: 11 hrs
• Total freezing capacity: 6 kg / 24 hrs
• No. of drawers in freezer compartment: 3
• FrostSafe: featuring drawers closed all the way round with transparent fronts
• Drawer pull-out system, freezer compartment: no pull-out system (with glass shelves)
• Interior light, freezer compartment: —
• 4-star freezer compartment: ✔
• 4-star freezer compartment door: —
• Number of glass shelves, 4-star freezer compartment: 0
• VarioSpace: ✔
• IceMaker: —
• IceMaker safe lighting: —
• Ice cube tray: —
• Number of ice cube trays: 0
• Number of water filters: 0
• Number of cold storage accumulators: 0
• Freezer tray: 0
• Star-coding: 4

Design and materials

• Stainless steel rear wall: —
• Inner door décor: —
• Material door shelves: White plastic
• Storage shelf material, refrigerator compartment: Glass
• Material of adjustable shelves in the freezer compartment: Glass
• Door material: Steel

Set-up and installation

Specifications

• Aperture dimensions height/width/depth: 177.2 – 178.8 / 56 – 57 / 55 cm
• Height / Width / Depth (with packaging): 1,829 / 572 / 622 mm
• Weight (without packaging): 57.30 kg
• Weight (with packaging): 61.20 kg
• Total volume: 264 l
• Volume, refrigerator compartments: 183 l
• Volume, freezer compartments: 81 l
• Of which 4-star compartment: 81.1 l
